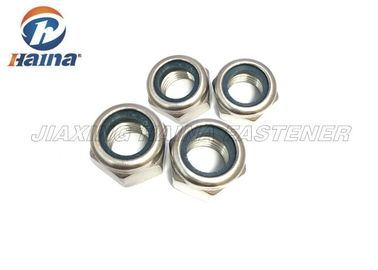

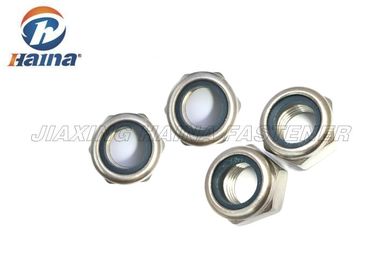

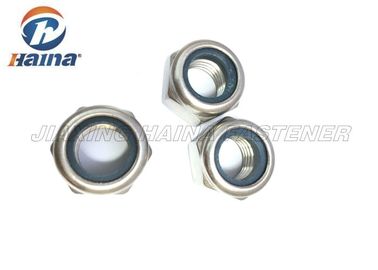

Customized Hex Head Nuts With Nylon Washer Insert Plain Finish Tempering / Hardening

Customized Hex Head Nuts With Nylon Washer Insert Plain Finish Tempering / Hardening

  • Customized Hex Head Nuts With Nylon Washer Insert Plain Finish Tempering / Hardening
  • Customized Hex Head Nuts With Nylon Washer Insert Plain Finish Tempering / Hardening
  • Customized Hex Head Nuts With Nylon Washer Insert Plain Finish Tempering / Hardening
  • Customized Hex Head Nuts With Nylon Washer Insert Plain Finish Tempering / Hardening
Customized Hex Head Nuts With Nylon Washer Insert Plain Finish Tempering / Hardening
পণ্যের বিবরণ:
উৎপত্তি স্থল: CN
পরিচিতিমুলক নাম: HNF
সাক্ষ্যদান: ISO9001:2008
মডেল নম্বার: 1/4"-2" M2-M12
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 900 kg
মূল্য: Negotiation
প্যাকেজিং বিবরণ: Common export packing. Cartons+Pallets, or customized packing. Bag Packing
ডেলিভারি সময়: 10-20 days
পরিশোধের শর্ত: L/C, T/T, Western Union, Paypal
যোগানের ক্ষমতা: 500 tons per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Product: Nylon Lock Hex Head Nut Head Drive: Hex with Nylon washer insert
Standard: DIN985 Surface: Plain Finish
Grade: SS304 SS316 Carbon steel Head: Hex Head
Torque: As standard Material: Stainless Steel
Inspection: 100%QC Steps Inspect Before Shipment Connection: Common nut
লক্ষণীয় করা:

Carbon Steel Nuts

,

Hex Flange Nuts



Stainless Steel DIN985 DIN982 ISO7040 M2-M12 1/4"-2" or Customize Nylock Nut Nylon Lock Hex Head Nut

Description:


Nut play the role of a component of all manufacturing machinery. It fastener other components. There are kinds of nut. We have common national standard, German standard, the British standard, American Standard, the subject of the nut. There are many kinds of lock nut. Hex Head Nut is very common.

A nyloc nut, also referred to as a nylon-insert lock nut, polymer-insert lock nut, or elastic stop nut, is a kind of locknut. It is a nut with a nylon washer insert that resists turning. The nylon insert has many kinds of material and production process.

The plastic insert is placed at the end of the nut, and its inner diameter (ID) is slightly smaller than the diameter of the screw. The insert deforms elastically over the threads of the screw, but threads are not cut into the nylon. The nylon insert locks the nut by friction against the screw under the applied radial compressive force. Nyloc nuts retain their locking ability up to 250 °F (121 °

The first is to use two same nuts on the bolt, attaching nuts a tightening torque between two, so that the bolt connection is reliable.
The second is dedicated locknut, and need a way to lock washer together. Dedicated locknut not hex nuts, but in a round nut, the nut circumference opened a three, four, six or eight notch (depending on the nut size and manufacturer product line varies), which tighten the focus of both a few notches tight tool, but also snaps into place lockwashers bayonet.
The third is on the outer surface of the nut to the inner circumferential surface of the threaded screw holes drilled therethrough (typically two, distributed in the outer-section 90) for screwing the small-diameter countersunk screws, the purpose is to t
hread applying a radial direction of force to prevent the lock nut loosened. At present quality on the market in a better lock nut inner peripheral surface of the nut encrusted consistent with the lock nut threaded brass pieces, to avoid radial top screws directly contacts the locking threads and damaged By. This rotational movement of the locking nut locking shaft-type parts of the case gradually began to use, such as a ball screw mounting end bearing locking.



Specification:



Item Stainless Steel DIN985 DIN982 ISO7040 M2-M12 1/4"-2" or Customize Nylock Nut Nylon Lock Hex Head Nut
size M2-M12 1/4"-2"
Material Available 1. Steel:C45(K1045), C46(K1046),C20
2. Stainless Steel: SUS201, SUS303, SUS304, SUS410, SUS420
Surface treatment Zinc plated, NI-platd, passivate, Chrome plated, Electro plating, Black, Plain
Heat treatment Tempering, Hardening, Spheroidizing, Stress Relieving.
Tolerance 6g
Packing carton box + pallet
Lead time Mass production 15-20 days. Reality time is according to customer's requirement
Address Jiaxing



Technical Delivery Conditions (FOR DIN NUT ONLY)
Material Steel Stainless steel Non-ferrous metal
General requirements As specified in DIN 267 part 1
Thread Tolerance 6H
Standard DIN13 Part 12 & 15
Mechanical
properties
Property
class
<M2.5: 6
M3-M39:6, 8, 10
≤M39 A2-70 Subject to
agreement
A4-70
>M39 Subject to
agreement
Standard ISO 267 Part 4 DIN267 Part 11 DIN267 Part 18
Limit deviations
geometrical tolerance
Product
grade
A for product up to size M24 and L≤10d or 150mm
B for product exceeding size M24 or L>10d or 150mm
Standard ISO 4759 Part 1
Acceptance inspection DIN267 Part 5 shall apply with regard to acceptance inspection




Application:

Hex Head Lock Nut is a kind of nut, which is mainly used for fastener one thing by the nuts. And it has requirement of the torque, and we will control the torque for customers.

Relying nylon washers to play a role in the locking, which is called nylon lock nuts. Commonly they are referred to in the industry "Nepalese cap". Mainly with threaded screw or bolt connection with the use, after locking nylon ring will be deformed, connecting both ends of the member to fill the gap, and thus play a role in locking.



Advantages:


1. Over 6 years of manufactiring experience
2. Well equiped with complete facilities
3. High quality with competitive price
4. Strict quality control system
Sample available

5. Professional Workers
6. OEM workable
